Cold drawn square bars are precision-engineered steel components renowned for their exceptional dimensional accuracy, superior surface finish, and enhanced mechanical properties. This comprehensive guide delves into the intricacies of these versatile materials, covering their manufacturing process, characteristics, diverse applications, and crucial selection considerations.

The Cold Drawing Process: Shaping Precision

The creation of cold drawn square bars begins with hot-rolled steel bars. These bars, already possessing a basic square shape, undergo a series of crucial steps in the cold drawing process. This process involves pulling the heated steel bar through a series of progressively smaller dies at room temperature. This controlled deformation refines the grain structure of the steel, significantly impacting its final properties. The absence of heat during this process prevents oxidation and scaling, resulting in a cleaner, smoother surface than hot-rolled counterparts. The precise control over the drawing process allows for extremely tight tolerances, yielding bars with exceptional dimensional accuracy. This accuracy is critical for applications demanding precise fit and function.

Exceptional Mechanical Properties: Strength and Durability

Cold drawing imparts several key mechanical advantages to square bars. The cold working process increases the yield strength and tensile strength of the steel, making it significantly stronger and more resistant to deformation under load. This enhanced strength is crucial in applications requiring high structural integrity. Furthermore, cold drawing improves the bar’s hardness, enhancing its resistance to wear and abrasion. The resulting improved ductility allows for greater formability, facilitating secondary processing such as bending, machining, and welding, depending on the grade of steel.

Diverse Applications: Where Precision Matters

The combination of high strength, precision dimensions, and superior surface finish makes cold drawn square bars highly versatile. Their applications span numerous industries. In the automotive industry, they are used in chassis components, suspension systems, and engine parts. The construction industry utilizes them in structural supports, reinforcement bars, and specialized components. The manufacturing sector employs them in machinery parts, tooling, and precision fixtures. Other applications include hydraulic cylinders, furniture manufacturing, and various custom fabrication projects where high strength and accuracy are paramount.

Selecting the Right Cold Drawn Square Bar: A Guide to Specifications

Selecting the appropriate cold drawn square bar requires careful consideration of several factors. The required dimensions (length and cross-sectional area) are fundamental. The grade of steel is critical, impacting strength, hardness, and other mechanical properties. Common steel grades include low-carbon steel, medium-carbon steel, and high-carbon steel, each offering a different balance of strength, ductility, and weldability. Surface finish requirements also play a role; some applications demand a highly polished surface, while others may tolerate a more standard finish. Finally, tolerance specifications dictate the permissible variation in dimensions, crucial for ensuring proper fit and function in the final assembly.

Advantages of Cold Drawn Square Bars over Alternatives

Compared to hot-rolled square bars, cold drawn bars offer significant advantages. Their superior surface finish reduces the need for extensive machining, saving time and cost. The enhanced dimensional accuracy minimizes waste and simplifies assembly. The increased strength allows for lighter designs without compromising structural integrity. These advantages translate to improved efficiency and reduced manufacturing costs in many applications. Furthermore, cold drawn bars often exhibit better fatigue resistance compared to hot-rolled counterparts, extending their lifespan in cyclically loaded applications.

In conclusion, cold drawn square bars represent a superior choice for numerous engineering and manufacturing applications where precision, strength, and durability are essential. Understanding their manufacturing process, properties, and selection criteria is crucial for engineers and manufacturers seeking to optimize their designs and improve product performance.

SEO-Friendly Tags:

• Cold Drawn Square Bars
• Steel Square Bars
• Precision Steel Bars
• High Strength Steel Bars
• Cold Drawing Process

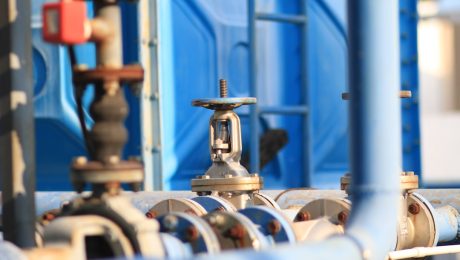

High-pressure piping systems are crucial in various industries, from oil and gas to chemical processing and power generation. However, the inherent risks associated with high pressure demand rigorous safety protocols. A failure in a high-pressure pipe can lead to catastrophic consequences, including injury, environmental damage, and significant financial losses. This comprehensive guide delves into the essential aspects of high-pressure pipe safety, providing insights to mitigate risks and ensure operational integrity.

1. Material Selection: The Foundation of High-Pressure Pipe Safety

Choosing the right material is paramount. The material must withstand the operating pressure, temperature, and the nature of the fluid being transported. Common materials include carbon steel, stainless steel, and various alloys, each possessing unique properties. Factors to consider include:

• Yield Strength: The material’s resistance to permanent deformation under stress. Higher yield strength is crucial for high-pressure applications.
• Tensile Strength: The maximum stress a material can withstand before breaking. This is essential for ensuring the pipe doesn’t rupture under pressure.
• Corrosion Resistance: The material’s ability to resist degradation from the transported fluid or environmental factors. Stainless steel is often preferred for corrosive fluids.
• Temperature Resistance: The material’s ability to maintain its strength and integrity at elevated temperatures. Some alloys are specifically designed for high-temperature applications.
• Weldability: The ease with which the material can be welded, ensuring seamless joints crucial for pressure integrity.

Proper material selection requires thorough engineering analysis, considering all relevant factors and adhering to relevant industry standards and codes.

2. Pressure Testing: Validating the Integrity of High-Pressure Pipes

Pressure testing is a non-destructive method used to verify the structural integrity of pipes before they are put into service. This involves subjecting the pipe to a pressure significantly higher than its operating pressure (typically 1.5 times the maximum allowable working pressure) for a specified duration. Careful monitoring of pressure and any leaks is crucial. Different testing methods exist, including:

• Hydrostatic Testing: Using water as the testing medium. This is a common and relatively inexpensive method.
• Pneumatic Testing: Using compressed air or gas. This method is faster but requires greater caution due to the potential for explosive decompression if a failure occurs.

Detailed records of pressure testing, including date, pressure levels, duration, and any observations, must be maintained for future reference and compliance purposes.

3. Leak Detection and Prevention: Proactive Measures for Safety

Regular leak detection is critical for preventing failures. Methods include visual inspections, acoustic leak detection (listening for unusual sounds), and advanced techniques like infrared thermography (detecting heat signatures associated with leaks). Early detection allows for timely repairs, preventing escalation into major incidents. Leak prevention strategies include:

• Regular Inspections: Scheduled visual inspections for signs of wear, corrosion, or damage.
• Proper Installation: Correct installation techniques minimize stress points and potential leaks.
• Corrosion Protection: Applying coatings or using corrosion-resistant materials to extend the lifespan of the pipes.
• Cathodic Protection: An electrochemical technique used to prevent corrosion in metallic pipes.

4. Maintenance and Inspection: Ensuring Long-Term Reliability

A comprehensive maintenance program is essential for ensuring the long-term safety and reliability of high-pressure piping systems. This involves regular inspections, cleaning, and repairs as needed. The frequency of maintenance depends on factors such as operating conditions, material type, and the nature of the transported fluid. Key maintenance tasks include:

• Visual Inspections: Regular visual checks for signs of corrosion, damage, or leaks.
• Non-Destructive Testing (NDT): Employing techniques like ultrasonic testing or radiographic testing to detect internal flaws.
• Cleaning: Removing accumulated debris or deposits that can restrict flow or accelerate corrosion.
• Repair or Replacement: Addressing any identified damage through repairs or replacement of affected sections.

Proper documentation of all maintenance activities is crucial for tracking the system’s health and ensuring compliance with regulations.

5. Emergency Procedures: Responding to High-Pressure Pipe Failures

Despite preventative measures, failures can occur. Having well-defined emergency procedures is vital to minimize the impact of such events. These procedures should include:

• Emergency Shutdown Procedures: Quick and efficient methods to shut down the system in case of a leak or failure.
• Isolation Valves: Strategically placed valves to isolate affected sections of the pipeline, limiting the extent of any release.
• Emergency Response Team: A trained team responsible for responding to incidents, including containment and cleanup.
• Communication Protocols: Clear communication channels to alert relevant personnel and emergency services.
• Evacuation Plans: Predetermined evacuation routes and assembly points in case of a major incident.

Regular drills and training are crucial to ensure the effectiveness of emergency procedures.

Adhering to these safety guidelines and implementing a robust safety management system are crucial for minimizing the risks associated with high-pressure piping systems. Remember, safety is not just a cost; it’s an investment in protecting people, the environment, and your business.

Tags: high pressure pipe safety, pipe safety, pressure testing, leak detection, high pressure pipe maintenance

Construction nails are seemingly simple components, yet their quality and proper selection significantly impact the longevity and structural integrity of any building project. Choosing the right nail isn’t just about aesthetics; it’s about ensuring safety and preventing costly repairs down the line. This comprehensive guide explores the standards and durability aspects of construction nails, equipping you with the knowledge to make informed decisions.

Understanding Construction Nail Standards: Size, Gauge, and Material

Construction nails are standardized according to several key parameters. The most crucial are size (length), gauge (diameter), and material. Size is measured in pennyweights (d), with larger penny numbers indicating longer nails. For example, a 6d nail is shorter than a 16d nail. Gauge refers to the thickness of the nail shaft, typically expressed as a number; smaller gauges indicate thicker nails. The material is usually steel, but variations exist, including galvanized steel (corrosion-resistant), stainless steel (superior corrosion resistance), and even specialized alloys for high-strength applications.

Standards organizations, such as ASTM International (American Society for Testing and Materials), define specific requirements for nail dimensions, mechanical properties (tensile strength, shear strength), and surface finish. Adherence to these standards ensures consistency and predictability in nail performance.

Understanding these parameters is vital. A nail that’s too short might pull out, while one that’s too long might damage the surrounding material. Similarly, a nail of insufficient gauge might bend under stress, compromising structural integrity. The choice of material depends on the environment and the intended application; galvanized nails are suitable for outdoor use, whereas stainless steel nails are preferred in highly corrosive environments.

The Role of Nail Durability: Factors Affecting Longevity

The durability of a construction nail is influenced by several interconnected factors. The material itself plays a significant role. Galvanized nails offer superior resistance to rust and corrosion compared to plain steel nails, extending their lifespan, especially in outdoor applications. Stainless steel nails provide the highest level of corrosion resistance, making them ideal for marine or chemical environments.

The nail’s hardness and strength are also crucial. Harder nails are less prone to bending under stress, and higher tensile and shear strength ensure that they can withstand significant loads before failing. The type of wood being nailed also plays a role; harder woods require stronger nails, and the angle of nailing can affect the holding power.

Finally, the surface finish can impact durability. A smooth, consistent finish reduces the risk of premature failure. Some nails have specialized coatings that further enhance corrosion resistance or provide additional grip within the wood.

Common Types of Construction Nails and Their Applications

Numerous types of construction nails cater to various applications. Common types include:

• Common nails: These are general-purpose nails with a relatively smooth shaft and a slightly tapered head.
• Finishing nails: These have small heads that are easily countersunk, making them ideal for finer woodwork.
• Box nails: These have a smaller head and are often used for assembling boxes and crates.
• Brad nails: These are very small nails used for delicate work.
• Roofing nails: These are designed with larger heads and rings to prevent them from pulling out of roofing materials.
• Drywall nails: These are designed to drive easily into drywall and minimize damage.
• Masonry nails: These are specially hardened to penetrate concrete, brick, or stone effectively.

Understanding the specific application of each type of nail is essential for achieving optimal results. Using the wrong type of nail can lead to structural weakness, aesthetic flaws, or even injury.

Testing and Quality Control of Construction Nails

Rigorous testing and quality control procedures are crucial in ensuring the durability and reliability of construction nails. Manufacturers typically subject their nails to various tests to assess their mechanical properties, including tensile strength, shear strength, and bending resistance. These tests often adhere to established standards set by organizations like ASTM International.

Furthermore, quality control measures are implemented throughout the manufacturing process to ensure consistent nail dimensions, material composition, and surface finish. This includes regular inspections and checks to identify and rectify any defects before the nails reach the market.

Reputable manufacturers provide certifications and test reports to demonstrate that their nails meet or exceed relevant industry standards. Checking for such documentation can be a valuable indicator of nail quality and reliability.

Choosing the Right Construction Nails for Your Project: A Practical Guide

Selecting the appropriate construction nails depends heavily on the specific application. Consider these factors:

• Type of wood: Hardwoods require stronger nails than softwoods.
• Intended application: Different nails are designed for different purposes (e.g., framing, finishing, roofing).
• Environmental conditions: Outdoor applications necessitate corrosion-resistant nails (galvanized or stainless steel).
• Load-bearing requirements: Heavily loaded structures require stronger nails with higher tensile and shear strength.
• Aesthetic considerations: Finishing nails are preferred when a smooth, countersunk finish is desired.

By carefully considering these factors, you can select the optimal nails for your project, ensuring both structural integrity and aesthetic appeal.

Choosing the right construction nails is a critical aspect of any building project. By understanding nail standards, durability factors, and the various types available, you can significantly enhance the longevity and safety of your work. Always prioritize quality and ensure that the nails you choose meet or exceed relevant industry standards.

Tags: construction nails, nail standards, nail durability, types of nails, construction materials

body {
font-family: sans-serif;
line-height: 1.6;
}
h1, h2, h3 {
color: #333;
}
img {
max-width: 100%;
height: auto;
}

The maritime industry relies heavily on robust and reliable materials, and steel pipes are fundamental components in the construction of virtually every ship. From intricate plumbing systems to structural support, the choice of steel pipe significantly impacts a vessel’s safety, efficiency, and longevity. This comprehensive guide explores the critical role of steel pipes in shipbuilding, delving into their various types, applications, and the crucial specifications that ensure optimal performance.

Types of Steel Pipes Used in Shipbuilding

Shipbuilding utilizes a diverse range of steel pipes, each tailored to specific applications and performance requirements. The most common types include:

• Carbon Steel Pipes: These are the workhorses of shipbuilding, offering a balance of strength, weldability, and cost-effectiveness. They are widely used for general piping systems, including those for water, fuel, and compressed air. Grades like ASTM A53 and ASTM A106 are frequently specified.
• Stainless Steel Pipes: Where corrosion resistance is paramount, stainless steel pipes are indispensable. They are employed in systems handling seawater, chemicals, and other corrosive substances. Grades like 304 and 316 stainless steel are commonly used, offering varying levels of corrosion resistance.
• Alloy Steel Pipes: For high-pressure and high-temperature applications, alloy steel pipes provide enhanced strength and creep resistance. These are often found in boiler systems and other critical components requiring superior mechanical properties.
• ERW (Electric Resistance Welded) Pipes: These pipes are cost-effective and widely used for less demanding applications. However, their strength might be slightly lower compared to seamless pipes.
• Seamless Pipes: Seamless steel pipes offer superior strength and durability compared to welded pipes, making them ideal for high-pressure applications and critical structural elements. The absence of welds eliminates potential weak points.

Applications of Steel Pipes in Ship Construction

The versatility of steel pipes makes them essential across various ship systems:

• Plumbing and Drainage Systems: Steel pipes form the backbone of a ship’s plumbing network, carrying fresh water, sewage, and greywater. The choice of pipe material depends on the fluid being transported and the risk of corrosion.
• Fire Protection Systems: Steel pipes are crucial for fire sprinkler and fire main systems, ensuring rapid and effective fire suppression throughout the vessel.
• Fuel and Lubrication Systems: Steel pipes transport fuel and lubricants to engines and other machinery, requiring robust construction and leak-proof seals to prevent spills and fires.
• Hydraulic and Pneumatic Systems: Steel pipes are used in hydraulic and pneumatic systems that control various ship functions, including steering, cargo handling, and ballast control.
• Structural Support: In some instances, steel pipes are incorporated into the ship’s structure, providing support and reinforcement in specific areas.
• Ballast Systems: Large steel pipes are used to manage the ballast water within the vessel, crucial for stability and maneuverability.

Steel Pipe Specifications and Standards

Adherence to strict specifications and standards is crucial to ensure the quality and safety of steel pipes used in shipbuilding. Key standards include:

• ASTM (American Society for Testing and Materials): ASTM provides numerous standards for steel pipes, defining chemical composition, mechanical properties, and testing procedures.
• ISO (International Organization for Standardization): ISO standards offer global guidelines for steel pipe manufacturing and quality control.
• DNV GL (Det Norske Veritas Germanischer Lloyd): DNV GL provides classification and certification services for ships, including the assessment of steel pipes used in construction.
• ABS (American Bureau of Shipping): Similar to DNV GL, ABS sets standards and provides certifications related to the materials used in shipbuilding.

These standards cover aspects such as pipe diameter, wall thickness, pressure ratings, and surface finish. Compliance with these standards is vital for ensuring the structural integrity and safety of the vessel.

Challenges and Future Trends in Steel Pipe Usage

While steel pipes remain dominant, the shipbuilding industry faces challenges related to cost, weight, and environmental concerns:

• Weight Reduction: The increasing focus on fuel efficiency is driving demand for lighter-weight materials. Research is ongoing into advanced steel alloys and alternative pipe materials to reduce overall ship weight.
• Corrosion Management: Corrosion remains a significant issue, particularly in marine environments. Advanced coatings, corrosion inhibitors, and the use of corrosion-resistant alloys are crucial for extending the lifespan of steel pipes.
• Sustainability: The industry is increasingly focused on sustainable practices. Recycling steel pipes and utilizing recycled steel in manufacturing are becoming more prevalent.
• Advanced Manufacturing Techniques: Innovations in manufacturing processes, such as 3D printing, are being explored to produce custom-designed pipes with enhanced properties.

Choosing the Right Steel Pipe for Your Shipbuilding Project

Selecting the appropriate steel pipe involves careful consideration of several factors:

• Application: The specific use of the pipe dictates the required material properties (strength, corrosion resistance, etc.).
• Pressure and Temperature: The operating pressure and temperature of the system will influence the choice of pipe material and wall thickness.
• Fluid Compatibility: The pipe material must be compatible with the fluid being transported to prevent corrosion or contamination.
• Cost and Availability: Balancing performance requirements with cost-effectiveness is essential.
• Regulatory Compliance: Ensuring compliance with relevant industry standards and regulations is paramount for safety and certification.

Consulting with experienced engineers and material specialists is crucial to make informed decisions that ensure the long-term success and safety of your shipbuilding project.

Disclaimer: This blog post provides general information and should not be considered professional engineering advice. Always consult with qualified professionals for specific applications and compliance requirements.

Tags: Steel pipes, shipbuilding, marine pipes, ASTM steel pipes, stainless steel pipes, shipbuilding materials

Steel, a cornerstone of modern construction and manufacturing, demands precise and efficient cutting techniques. The choice of cutting method depends heavily on factors such as material thickness, desired cut quality, production volume, and budget. This comprehensive guide explores the diverse world of steel cutting technologies, examining their strengths, weaknesses, and applications.

1. Thermal Cutting: Harnessing the Power of Heat

Thermal cutting methods utilize intense heat to melt and sever steel. These processes are generally faster and more cost-effective for thicker materials than mechanical methods. Several key thermal cutting techniques exist:

• Oxy-Fuel Cutting (OFC): This classic method uses a high-velocity jet of oxygen to burn through steel. A preheating flame is used to raise the steel’s temperature to its ignition point, allowing the oxygen jet to rapidly oxidize and melt the metal. OFC is relatively inexpensive and suitable for thick plates, but it produces a wider kerf (cut width) and a rougher edge compared to other methods. It’s primarily used for mild and low-alloy steels.
• Plasma Arc Cutting (PAC): PAC uses a constricted arc of extremely hot plasma to melt and cut the steel. The plasma jet is much more focused than an oxy-fuel flame, resulting in a narrower kerf and a cleaner cut. PAC is suitable for a wider range of steel types, including stainless steel and aluminum, and can handle thicker materials than laser cutting. However, it’s more expensive than OFC.

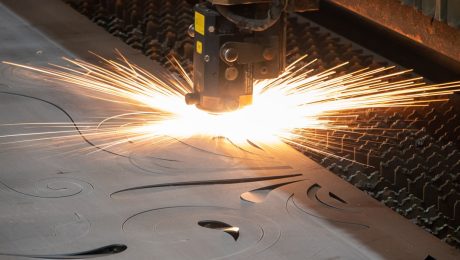

• Laser Cutting: Laser cutting uses a high-powered laser beam to melt and vaporize the steel. This method offers exceptional precision and accuracy, allowing for intricate designs and narrow kerfs. Laser cutting produces a high-quality edge, minimizing the need for post-processing. However, it’s generally more expensive than other thermal methods and is best suited for thinner materials. The choice of laser type (CO2 or fiber) will impact the capabilities and suitability for different steel grades.

2. Mechanical Cutting: Precision Through Physical Force

Mechanical cutting methods rely on physical force to separate the steel. These methods are often preferred for their precision and ability to cut intricate shapes in thinner materials, although they can be slower and more expensive than thermal methods for thicker sections.

• Shearing: This process uses a powerful press to shear the steel along a straight line. It’s extremely fast and efficient for cutting relatively thin sheets of steel, producing a clean and square cut. However, it’s not suitable for thick materials or curved cuts.
• Sawing: Sawing uses a toothed blade to cut through the steel. Various types of saws exist, including circular saws, band saws, and abrasive saws. Sawing is versatile and can handle a wide range of thicknesses and shapes, but it’s generally slower than other methods and can produce a rougher edge, especially with abrasive saws. The choice of blade material and tooth design significantly impacts cutting speed and edge quality.

3. Abrasive Waterjet Cutting: The Power of Water and Grit

Abrasive waterjet cutting uses a high-pressure jet of water mixed with abrasive grit to cut through steel. This method is highly versatile, capable of cutting virtually any material, including hardened steels and composites. It produces a very clean and precise cut with minimal heat-affected zone (HAZ), making it ideal for delicate work and materials sensitive to heat distortion. However, it’s generally slower than thermal cutting methods and can be relatively expensive.

4. Choosing the Right Steel Cutting Technology: Key Considerations

Selecting the appropriate steel cutting technology requires careful consideration of several factors:

• Material Thickness: Thicker materials generally require thermal cutting methods, while thinner materials can be cut using mechanical or laser cutting.
• Desired Cut Quality: Laser cutting and abrasive waterjet cutting offer the highest quality cuts, while oxy-fuel cutting produces a rougher edge.
• Production Volume: High-volume production may benefit from faster methods like shearing or oxy-fuel cutting, while lower-volume production can justify the use of more precise but slower methods.
• Material Type: Certain methods are better suited for specific steel types. For example, laser cutting is excellent for thin stainless steel, while oxy-fuel cutting is more suitable for mild steel.
• Cost: Each method has a different cost structure, considering equipment investment, operating costs, and labor.

5. Safety Precautions in Steel Cutting

Steel cutting processes can be hazardous. Appropriate safety precautions are crucial to prevent injuries and damage. These include:

• Eye protection: Always wear appropriate eye protection to shield against sparks, debris, and intense light.
• Hearing protection: Many steel cutting processes generate loud noise, requiring the use of hearing protection.
• Respiratory protection: Some processes produce fumes and dust, necessitating respiratory protection.
• Proper ventilation: Adequate ventilation is crucial to remove fumes and dust from the work area.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including gloves, safety shoes, and flame-resistant clothing, as needed.
• Machine guarding: Ensure all machinery is properly guarded to prevent accidental contact.

Understanding the nuances of each steel cutting technology is vital for selecting the most efficient and cost-effective method for a given application. By carefully considering the factors outlined above and prioritizing safety, manufacturers and fabricators can ensure high-quality results and a safe working environment.

Tags: steel cutting, steel cutting methods, thermal cutting, mechanical cutting, abrasive waterjet cutting, laser cutting, plasma cutting

Steel, the backbone of countless industries, demands precise and efficient cutting techniques for optimal fabrication. From the towering skyscrapers that pierce the skyline to the intricate components within a sophisticated machine, the ability to cut steel accurately and effectively is paramount. This comprehensive guide delves into the diverse world of steel cutting technologies, exploring their principles, applications, and relative advantages and disadvantages.

1. Oxy-Fuel Cutting: The Thermal Torch’s Legacy

Oxy-fuel cutting, also known as oxyacetylene cutting, is a thermal cutting process that utilizes a high-temperature flame generated by the combustion of oxygen and a fuel gas, typically acetylene. This intensely hot flame preheats the steel to its ignition temperature, allowing a high-velocity stream of pure oxygen to react exothermically with the iron, rapidly oxidizing and removing the molten metal. Oxy-fuel cutting is relatively inexpensive and portable, making it suitable for on-site applications and cutting thicker materials, though its accuracy is limited compared to more advanced methods. The cut quality is often characterized by a wider kerf (cut width) and a slightly rougher edge, requiring further finishing in many applications. It’s best suited for cutting mild steel and is less effective on stainless steel or other high-alloy steels due to their higher melting points and resistance to oxidation.

2. Plasma Cutting: Harnessing the Power of Ionized Gas

Plasma cutting utilizes a high-velocity jet of ionized gas, typically compressed air or nitrogen, to sever the steel. An electric arc is generated between a nozzle and the workpiece, creating a plasma arc with temperatures exceeding 20,000°C. This incredibly hot plasma melts and expels the molten metal, resulting in a much narrower kerf and a cleaner cut than oxy-fuel cutting. Plasma cutting is capable of cutting a wider range of materials than oxy-fuel cutting, including stainless steel and aluminum, although the thickness is generally limited compared to other thermal cutting methods. Its speed and precision make it ideal for medium-to-high-volume production runs, and the automated nature of many plasma cutting systems enhances efficiency and repeatability.

3. Laser Cutting: Precision and Versatility Redefined

Laser cutting employs a focused beam of high-powered laser light to melt and vaporize the steel. The precision of laser cutting is unmatched, allowing for intricate designs and extremely tight tolerances. Different laser types, such as CO2 and fiber lasers, are used depending on the material and desired cut quality. Laser cutting offers exceptional speed and accuracy, making it ideal for complex shapes and high-precision components. While the initial investment in laser cutting equipment is significant, the superior quality and efficiency often outweigh the costs in the long run. It’s also widely used for thin sheet metal cutting and is increasingly employed in industries requiring intricate details and high-volume production.

4. Waterjet Cutting: The Abrasive Power of Water

Waterjet cutting utilizes a high-pressure jet of water mixed with an abrasive material, typically garnet, to cut through steel. The abrasive particles are propelled at extremely high speeds, eroding the steel and creating a clean, precise cut. Waterjet cutting is a cold cutting process, meaning it doesn’t generate significant heat, which minimizes heat-affected zones and makes it suitable for heat-sensitive materials. It’s capable of cutting virtually any material, including steel of various thicknesses and hardness, and leaves a smooth cut surface requiring minimal post-processing. However, compared to laser or plasma cutting, it can be slower, and the high-pressure equipment requires significant maintenance.

5. Shearing: A Mechanical Approach to Steel Cutting

Shearing is a mechanical cutting process that utilizes a pair of sharp blades to sever the steel. The blades are designed to create a clean, straight cut by applying a powerful shearing force. Shearing is typically used for cutting relatively thin sheets of steel and is a highly efficient method for mass production. The process is relatively quick and produces minimal waste, making it cost-effective for large-scale operations. However, shearing is limited by the thickness of the material it can handle and the complexity of shapes it can produce. The cut edges may also require further finishing depending on the application.

Choosing the right steel cutting technology depends on several factors, including material type, thickness, desired cut quality, production volume, and budget. Each method offers unique advantages and disadvantages, making it essential to carefully consider these factors before selecting the optimal approach for a particular application.

SEO-Friendly Tags:

• Steel Cutting Technologies
• Metal Cutting Processes
• Laser Cutting Steel
• Plasma Cutting Applications
• Waterjet Cutting Advantages

In today’s competitive market, ensuring product quality and safety is paramount. This isn’t just about meeting customer expectations; it’s about upholding legal compliance and building trust. Test reports and certifications play a crucial role in this process, providing irrefutable evidence of a product’s performance and adherence to specific standards. This comprehensive guide will delve into the world of test reports and certifications, exploring their significance and practical applications.

Understanding the Importance of Test Reports

Test reports are the documented evidence of the testing process. They detail the methodology employed, the results obtained, and any conclusions drawn. These reports are not merely a formality; they serve several critical functions:

• Demonstrating Product Quality: Test reports objectively showcase a product’s capabilities and limitations, providing concrete data to support claims of quality and reliability.
• Identifying Defects and Areas for Improvement: By analyzing test results, manufacturers can pinpoint flaws and weaknesses in their products, leading to improved design and manufacturing processes.
• Facilitating Decision-Making: Reports provide crucial information for stakeholders, enabling informed decisions regarding product launch, marketing, and further development.
• Meeting Regulatory Requirements: Many industries have stringent regulatory requirements that necessitate comprehensive testing and detailed documentation, with test reports forming a key part of the compliance process.
• Supporting Claims and Warranties: In case of disputes or warranty claims, test reports can serve as compelling evidence of product performance and adherence to specifications.

The Role of Certifications in Building Trust

Certifications go a step further than test reports. They are independent verifications of a product’s compliance with specific standards or regulations. Obtaining a certification from a reputable organization signifies a commitment to quality and provides several benefits:

• Enhanced Credibility and Trust: Certifications from recognized bodies instantly boost consumer confidence, assuring them of the product’s quality and safety.
• Competitive Advantage: In a crowded marketplace, certifications can act as a powerful differentiator, helping products stand out from the competition.
• Access to New Markets: Some industries require specific certifications for product entry, opening doors to new markets and expanding business opportunities.
• Reduced Liability: Demonstrating compliance through certification can significantly reduce the risk of legal issues and liability claims.
• Improved Internal Processes: The process of obtaining a certification often leads to improvements in internal quality management systems and practices.

Types of Test Reports and Certifications

The types of test reports and certifications vary widely depending on the industry, product, and specific requirements. Some common examples include:

• ISO 9001: A globally recognized standard for quality management systems.
• ISO 14001: Focuses on environmental management systems.
• ISO 27001: Addresses information security management.
• CE Marking (Conformité Européenne): Indicates compliance with EU health, safety, and environmental protection legislation.
• UL Certification (Underwriters Laboratories): A safety certification for various products, widely recognized in North America.
• FDA Compliance (Food and Drug Administration): Essential for medical devices and food products in the United States.

Each certification involves specific testing procedures and requirements, ensuring thorough evaluation of the product’s characteristics.

Interpreting Test Reports and Understanding Certification Marks

Understanding test reports and certification marks requires careful attention to detail. Reports should clearly state the testing methodology, equipment used, results obtained, and any limitations or assumptions. Certification marks should be verified against the issuing organization’s database to ensure authenticity. Looking for inconsistencies or discrepancies is crucial in ensuring the validity of the provided information.

It’s important to understand that not all certifications are created equal. The reputation and credibility of the certifying body are critical factors to consider. Choosing a reputable organization ensures the validity and reliability of the certification.

The Future of Test Reports and Certifications

With the increasing complexity of products and the growing emphasis on sustainability and ethical sourcing, the role of test reports and certifications is only set to expand. We can expect to see more specialized certifications addressing specific environmental, social, and governance (ESG) concerns. Digitalization and automation will also play a crucial role, leading to more efficient testing processes and streamlined reporting. The integration of blockchain technology is also emerging as a way to enhance the transparency and security of certification processes, preventing fraud and ensuring the integrity of the information.

In conclusion, test reports and certifications are not simply compliance requirements; they are essential tools for building trust, ensuring product quality, and gaining a competitive edge. By understanding their significance and utilizing them effectively, businesses can enhance their credibility, protect their brand reputation, and achieve sustainable success.

body {
font-family: sans-serif;
line-height: 1.6;
}
h1, h2, h3 {
color: #333;
}
img {
max-width: 100%;
height: auto;
display: block;
margin: 20px auto;
}

Radiographic inspection (RT) is a crucial non-destructive testing (NDT) method used to detect internal flaws in pipelines. This powerful technique utilizes ionizing radiation to create images revealing hidden defects that could compromise the integrity of the pipe, ultimately preventing catastrophic failures and ensuring safety.

Understanding the Principles of Radiographic Pipe Inspection

Radiographic inspection relies on the principle of differential absorption of radiation. A source of ionizing radiation, typically X-rays or gamma rays, is directed through the pipe. The radiation passes through the pipe material, with denser areas absorbing more radiation than less dense areas. A detector, usually a film or digital imaging system, captures the transmitted radiation. The resulting image shows variations in density, revealing internal defects such as cracks, welds imperfections, corrosion, and inclusions.

The choice between X-rays and gamma rays depends on factors like the pipe’s thickness and material. Gamma rays are more penetrating and suitable for thicker pipes or materials with high density, while X-rays are better suited for thinner sections.

Common Types of Radiographic Techniques Used in Pipe Inspection

Several techniques are employed in radiographic pipe inspection, each with its advantages and limitations:

• Film Radiography: This traditional method uses photographic film as the radiation detector. It’s cost-effective but requires processing time and offers limited image manipulation capabilities.
• Real-Time Radiography (RTR): RTR utilizes a digital detector that provides immediate image visualization. This allows for real-time monitoring and faster inspection times compared to film radiography.
• Computed Radiography (CR): CR employs reusable imaging plates that store the radiation information. These plates are then scanned to produce a digital image, offering advantages over film radiography in terms of image quality and processing speed.
• Digital Radiography (DR): DR systems use a digital detector to capture the radiation directly, eliminating the need for an intermediate step like in CR. This provides high-resolution images with excellent contrast and immediate results.

Interpreting Radiographic Images of Pipes: Identifying Defects

Interpreting radiographic images requires skilled technicians trained in recognizing various types of defects. These defects appear as variations in density on the radiograph. Common defects identified through radiographic inspection include:

• Cracks: Appear as linear discontinuities.
• Porosity: Shows up as small, round, or irregular dark spots.
• Inclusions: Appear as dark or light areas depending on the density of the inclusion compared to the surrounding material.
• Weld Defects: Such as lack of fusion, incomplete penetration, and slag inclusions, are easily identified in weld joints.
• Corrosion: May appear as thinning of the pipe wall, causing a change in density.

Accurate interpretation requires knowledge of welding procedures, pipe materials, and potential sources of defects.

Advantages and Limitations of Radiographic Pipe Inspection

Radiographic inspection offers several advantages:

• High Sensitivity: Detects a wide range of internal defects, even small ones.
• Permanent Record: Provides a permanent record of the inspection for future reference.
• Comprehensive Coverage: Can inspect large areas of the pipe simultaneously.
• Versatility: Applicable to various pipe materials and sizes.

However, there are some limitations:

• Radiation Safety: Requires strict adherence to safety protocols to protect personnel from radiation exposure.
• Accessibility: Access to the pipe may be limited, requiring specialized techniques or equipment.
• Cost: Can be relatively expensive, especially for large-scale inspections.
• Surface Defects: Primarily detects internal defects; surface defects may not be readily visible.

Applications of Radiographic Inspection in the Pipeline Industry

Radiographic inspection plays a vital role in various stages of the pipeline lifecycle:

• Manufacturing Quality Control: Ensuring the integrity of newly manufactured pipes and welds.
• In-service Inspection: Detecting defects in operating pipelines to prevent failures and ensure safety.
• Repair Verification: Assessing the effectiveness of repairs made to damaged pipelines.
• Pre-commissioning Inspection: Checking for defects before a pipeline is put into service.
• Forensic Investigation: Determining the cause of pipeline failures.

Its use is crucial in high-consequence applications where pipeline failure could have significant environmental or safety implications.

In conclusion, radiographic inspection is an indispensable technique for ensuring the integrity and safety of pipelines. Understanding its principles, techniques, and limitations is crucial for engineers and professionals involved in the pipeline industry.

Tags: Radiographic Inspection, Pipe Inspection, NDT, Non-Destructive Testing, Pipeline Inspection, X-ray Inspection, Gamma Ray Inspection

body { font-family: sans-serif; line-height: 1.6; }
h1, h2, h3 { color: #333; }
img { max-width: 100%; height: auto; }

The construction of modern ports demands innovative and robust solutions to handle increasing cargo volumes and withstand harsh marine environments. Steel pipes, with their inherent strength, versatility, and cost-effectiveness, are emerging as a game-changer in this field. This article delves into the multifaceted role of steel pipes in port construction, exploring their design, advantages, challenges, environmental impact, and future prospects.

Design Considerations for Steel Pipe Port Structures

The design of steel pipe structures for ports requires meticulous planning and engineering expertise. Factors to consider include the intended use (e.g., jetties, breakwaters, piers), the environmental conditions (e.g., wave action, currents, soil type), and the anticipated load capacity. Detailed analysis using finite element methods is crucial to ensure structural integrity. The design process also involves selecting appropriate pipe diameters, wall thicknesses, and connection methods. Different pipe configurations, such as piles driven directly into the seabed or cased piles, may be employed depending on the site-specific conditions. Furthermore, corrosion protection is a critical aspect of the design, often involving coatings, cathodic protection systems, or the use of corrosion-resistant steel alloys.

Advantages of Utilizing Steel Pipes in Port Construction

Steel pipes offer several advantages compared to traditional construction materials like concrete or timber. Their high strength-to-weight ratio allows for the construction of longer spans and deeper foundations, reducing the overall number of supports needed. This translates to cost savings and expedited construction timelines. Steel pipes are also highly durable and resistant to impact loads, making them ideal for withstanding the harsh conditions of a marine environment. Their prefabrication capability allows for efficient on-site assembly, minimizing disruption and maximizing productivity. Moreover, steel pipes are readily available and relatively inexpensive compared to some alternative materials, contributing further to their cost-effectiveness.

Challenges and Mitigation Strategies in Steel Pipe Port Construction

Despite the numerous advantages, challenges exist in utilizing steel pipes for port construction. Corrosion is a major concern, requiring careful selection of materials and implementation of robust corrosion protection measures. The potential for scour around the pipe foundations needs to be addressed through appropriate design and construction techniques, such as rock berms or scour protection mats. Transportation and handling of large-diameter steel pipes can also pose logistical challenges, requiring specialized equipment and expertise. Effective quality control throughout the entire process, from material selection to installation, is crucial to ensure the long-term performance and safety of the structure. Furthermore, proper planning and environmental impact assessments are vital to mitigate potential negative effects on marine ecosystems.

Environmental Considerations and Sustainable Practices

Environmental concerns are increasingly important in port construction. The use of steel pipes can contribute to sustainable practices through several aspects. Steel is a recyclable material, reducing waste and minimizing the environmental footprint compared to non-renewable materials. Careful planning and design can minimize the disruption of marine habitats during construction. Implementing appropriate measures to prevent pollution during construction and operation is also crucial. The selection of environmentally friendly coatings and corrosion protection systems can further reduce the environmental impact. Life cycle assessments (LCA) can provide a comprehensive evaluation of the environmental performance of steel pipe port structures, allowing for informed decision-making and optimization of sustainable practices.

Future Trends and Innovations in Steel Pipe Port Construction

The field of steel pipe port construction is constantly evolving. Innovations in materials science are leading to the development of high-strength, corrosion-resistant steel alloys, enhancing the durability and longevity of port structures. Advances in design and construction techniques, including the use of advanced modeling and simulation tools, are improving efficiency and reducing costs. The integration of smart technologies, such as sensors and monitoring systems, allows for real-time assessment of structural health and performance, enabling proactive maintenance and reducing the risk of failures. Furthermore, research is underway to explore the use of recycled steel in port construction, promoting circular economy principles and reducing the demand for virgin materials.

In conclusion, steel pipes offer a compelling solution for modern port construction, providing a balance of strength, durability, cost-effectiveness, and sustainability. Addressing the challenges through careful planning, advanced design techniques, and robust construction practices will ensure the continued success and widespread adoption of this innovative approach to port infrastructure development.

SEO Tags:

• Steel pipe port construction
• Port infrastructure
• Marine construction
• Steel pipe applications
• Sustainable port development
